rapid emergency deployables

We are sharing our notes on a rapidly deployable emergency structure we made with GSG Architects, Co.

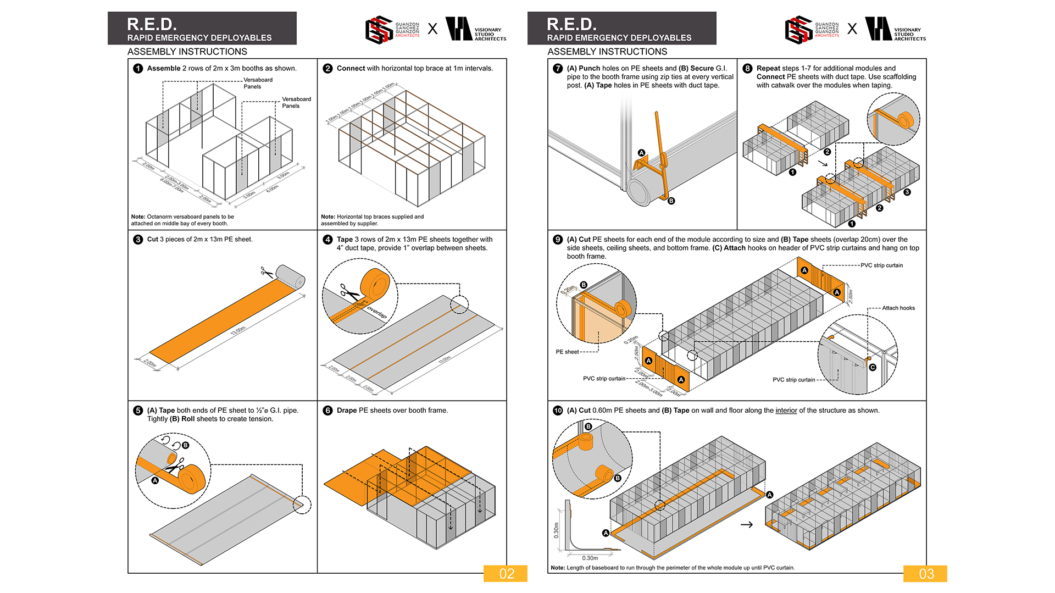

This 10 STEP manual shows how you can create a modular Negative Pressure emergency facility through the use of Octanorm booth frames, PE sheets, and zipties.

Negative pressure facilities have been cited as the best practice when creating quarantine centers as it does not allow contaminated air to escape from the facility.

The following prototype would aid in the conversion of enclosed or semi-enclosed spaces such as convention halls and covered courts into emergency quarantine centers that could be erected in day. Once the facility is no longer needed, the entire structure can be sanitized, dismantled, and reused leaving no waste.
